Add GPS Speed, Lap Timing & Track Position Data to Your AiM System

Want more useful data from your AiM dash or data logger without adding wheel-speed sensors or complicated wiring?

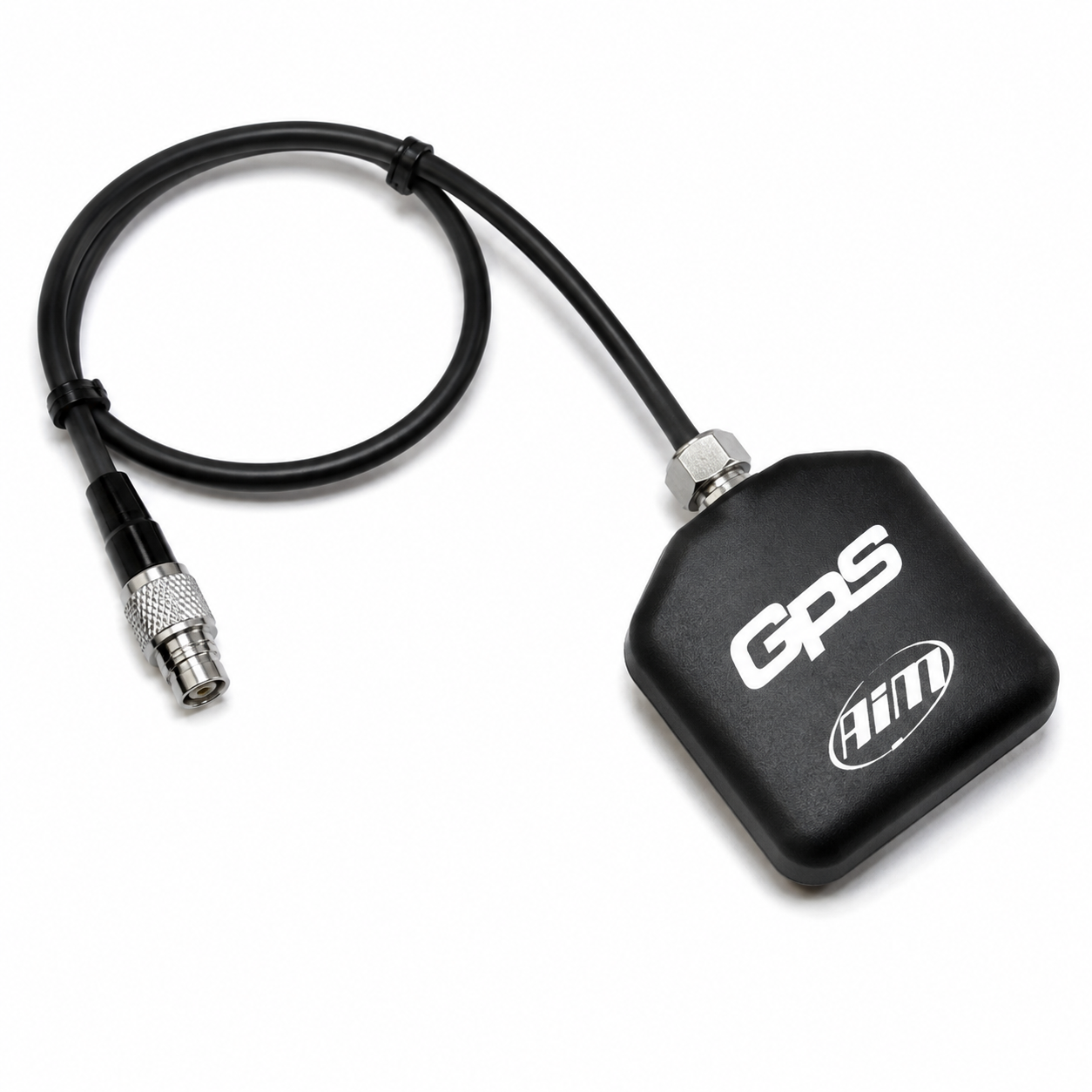

The AiM GPS09 Module adds GPS-based vehicle data directly to compatible AiM dashes and data acquisition systems, giving you accurate speed, position, lap timing, and track information for performance analysis.

Whether you're building a dedicated race car, time-attack car, road-racing setup, or high-performance street vehicle, GPS data gives you another powerful tool for understanding exactly what the car is doing.

More Than Just Vehicle Speed

The GPS09 uses satellite positioning to provide important vehicle and track data to your AiM system.

Depending on your AiM dash/logger and configuration, GPS data can be used for:

• GPS vehicle speed
• Automatic lap timing
• Vehicle position
• Track mapping
• Lap analysis
• Sector and split analysis
• Performance data correlation
• Data logging and post-session analysis

Instead of looking only at RPM, throttle position, boost, AFR, and engine parameters, you can correlate that information with where the vehicle was on the track and how fast it was moving.

Built for AiM Data Systems

The GPS09 is designed to integrate directly with compatible AiM products, giving you a clean installation without building a custom GPS interface.

Connect the module to your compatible AiM system, properly mount the GPS receiver with a clear view of the sky, configure your dash/logger, and start collecting GPS data.

Ideal for AiM Dashes & Data Loggers

The GPS09 is an excellent addition to compatible AiM systems used for:

• Road racing
• Time attack
• Autocross
• Track days
• Drag racing data analysis
• Race cars
• Performance street cars
• Engine swaps
• Standalone ECU installations
• Motorsport data acquisition

See What Actually Happened on Track

Engine data only tells part of the story.

Imagine reviewing a lap and seeing exactly where you:

Braked later.
Carried more speed.
Got back on the throttle.
Lost time.
Gained time.

Combine GPS information with your ECU and AiM logging channels and you have a much clearer picture of both driver and vehicle performance.

That makes the GPS09 especially valuable when you're trying to improve lap times, compare sessions, evaluate setup changes, or diagnose a performance issue that only happens in a certain part of the track.

Clean, Compact Installation

The GPS09's compact receiver makes it easy to integrate into a properly configured race or performance vehicle without adding unnecessary clutter.

Key Features

• GPS module designed for compatible AiM systems
• GPS-based vehicle speed
• GPS position data
• Automatic lap timing capability
• Track mapping support
• Useful for lap and sector analysis
• Integrates GPS data with other logged vehicle channels
• Compact receiver design
• Motorsport-focused construction
• Simple addition to compatible AiM dash and logger installations

Perfect Addition to Your AiM Dash

If you've already invested in an AiM dash or data-logging system, adding GPS allows you to get significantly more information out of every pass, lap, and test session.

The AiM GPS09 Module turns your AiM system into a more complete vehicle and driver data-analysis package—helping you stop guessing and start making decisions based on actual logged data.

Compatibility Note: Verify compatibility with your specific AiM dash or data logger and connector configuration before ordering.
