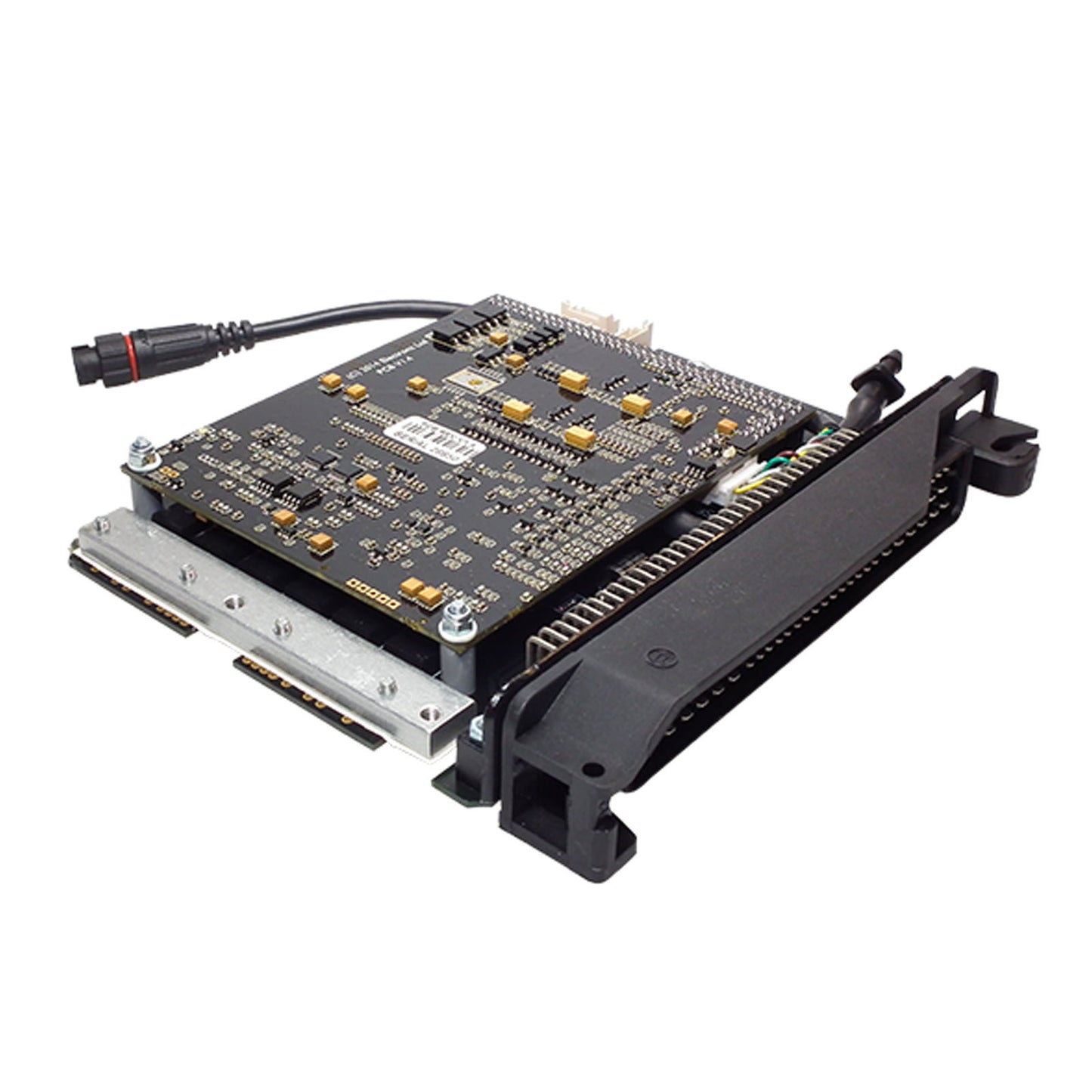

Link ECU G4X BMW E36 M50TUB25 PlugIn ECU — E36X
Upgrade your BMW E36 with the Link ECU G4X E36X PlugIn ECU. This advanced standalone engine-management system installs inside the factory ECU enclosure and connects to the original engine wiring loom, providing complete control over fuel, ignition, VANOS, boost and advanced motorsport functions.
The E36X is designed specifically for compatible BMW E36 models equipped with the M50TUB25 engine and factory Bosch M3.3.1 ECU. It delivers modern engine management without requiring a complete standalone wiring harness.
FREE Link ECU USB Tuning Cable — $70 Value
Every E36X purchased from Kugan Tuning includes a compatible Link ECU USB tuning cable at no additional cost. Connect your laptop directly to the ECU for configuration, diagnostics, data logging and professional tuning.
Critical Compatibility Check
This ECU is compatible only with vehicles originally equipped with:
- BMW M50TUB25 engine
- Bosch M3.3.1 factory ECU
- Matching factory ECU connectors and pinout
An E36 chassis or 2.5-liter engine alone does not confirm compatibility. Check the engine code, factory ECU model and connector arrangement before ordering.
Why Choose the Link G4X E36X?
- Designed specifically for compatible BMW E36 M50TUB25 applications
- Supports factory Bosch M3.3.1 ECU wiring
- Works with manual and automatic transmissions
- Suitable for naturally aspirated, supercharged and turbocharged builds
- Installs inside the factory OEM ECU enclosure
- Connects to the original engine wiring loom
- No complete standalone wiring harness required
- Choice of onboard 4-bar or 7-bar MAP sensor
- Advanced fuel, ignition, VANOS and boost control
- Launch control, anti-lag and flat-shift capability
- Expandable inputs and outputs
- CAN communication
- 512 MB of onboard data-logging memory
- FREE Link ECU USB tuning cable included—a $70 value
- FREE Kugan Tuning remote setup support included—a $297 value
Proven BMW E36 Turbo Dyno Performance
See the Link ECU G4X E36X in action on a turbocharged BMW E36.
The dyno graph below shows a final result of 348.90 horsepower and 318.47 lb-ft of torque, compared with a previous run of 288.38 horsepower and 265.10 lb-ft of torque.
Turbocharged BMW E36 dyno results using the Link ECU G4X E36X and professional calibration.
Watch the E36 Turbo Dyno Run
Watch the vehicle perform under load and see the Link ECU-controlled turbo setup make power on the dyno.
Results will vary. Final horsepower and torque depend on the engine combination, turbocharger, fuel system, boost pressure, fuel type, mechanical condition and calibration.
Suitable Applications
- BMW E36 equipped with an M50TUB25 engine
- Vehicles originally equipped with a Bosch M3.3.1 ECU
- Manual-transmission applications
- Automatic-transmission applications
Important Compatibility Information
- Compatible only with the M50TUB25 engine and Bosch M3.3.1 factory ECU
- Compare your factory ECU connector with the product photos before ordering
- Compatibility is determined by the engine code, ECU model, connector and pinout—not solely by the vehicle model or year
- Select the appropriate onboard 4-bar or 7-bar MAP sensor when ordering
- Electronic-throttle control requires an ECU modification before it can be used
- Most factory vehicle functions are supported, but availability may vary by transmission and vehicle configuration
- Modified vehicles and engine swaps may require additional wiring, sensors or configuration
- Professional installation and calibration are strongly recommended
G4X Engine-Management Features
- Up to 6D fuel and ignition mapping
- Sequential fuel injection
- Precision closed-loop camshaft control where applicable
- Digital triggering with support for OEM trigger patterns
- OEM idle-control hardware support
- 5D boost control with three switchable tables
- Boost control based on gear, vehicle speed or throttle position
- Launch control
- Anti-lag
- Flat-shift control
- QuickTune automated fuel tuning
- Individual-cylinder correction
- Gear-based fuel, ignition and boost compensation
- Real-time selectable fuel, ignition and boost maps
- Continuous onboard barometric correction
- Staged injection
- Knock control with configurable knock windows
- Hall-effect, variable-reluctance and optical trigger-sensor support
- CAN communication
- Onboard statistics recording
- 512 MB of onboard data-logging memory
I/O Expansion Options
The E36X expansion connector provides the following connections:
- Temperature input 3
- Temperature input 4
- Analog voltage input 4
- Analog voltage input 5
- Digital input 8
- Digital input 7
- Low-current 5V sensor supply
- Sensor ground
Refer to the PCLink Help file for detailed expansion-cable installation and configuration instructions.
What’s Included
- Link ECU G4X BMW E36X PlugIn ECU
- Selected onboard 4-bar or 7-bar MAP sensor
- FREE Link ECU USB tuning cable—a $70 value
- FREE Kugan Tuning remote setup support—a $297 value
Expansion accessories and custom tuning are not included unless purchased separately.
FREE Remote Setup Support — $297 Value
Purchase your Link ECU from Kugan Tuning and receive complimentary remote setup support to help prepare the ECU and vehicle for startup and professional tuning.
Remote setup support includes:
- Remote ECU connection and setup assistance
- Basemap selection guidance
- Initial ECU configuration assistance
- Startup configuration review
- Sensor and input verification
- Guidance preparing the vehicle for professional tuning
This support helps identify configuration and sensor problems early, reducing unnecessary troubleshooting and wasted dyno time.
Custom remote tuning and dyno tuning are not included unless separately purchased. Successful startup and vehicle operation depend on correct compatibility, installation, wiring, mechanical condition and ECU calibration.
