Put the Data That Matters Directly in Front of You

When you're on track, you don't have time to look through multiple gauges or a laptop to figure out what the engine is doing.

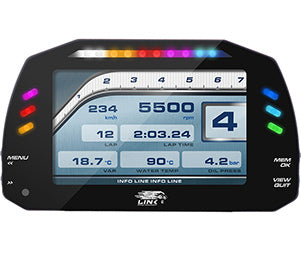

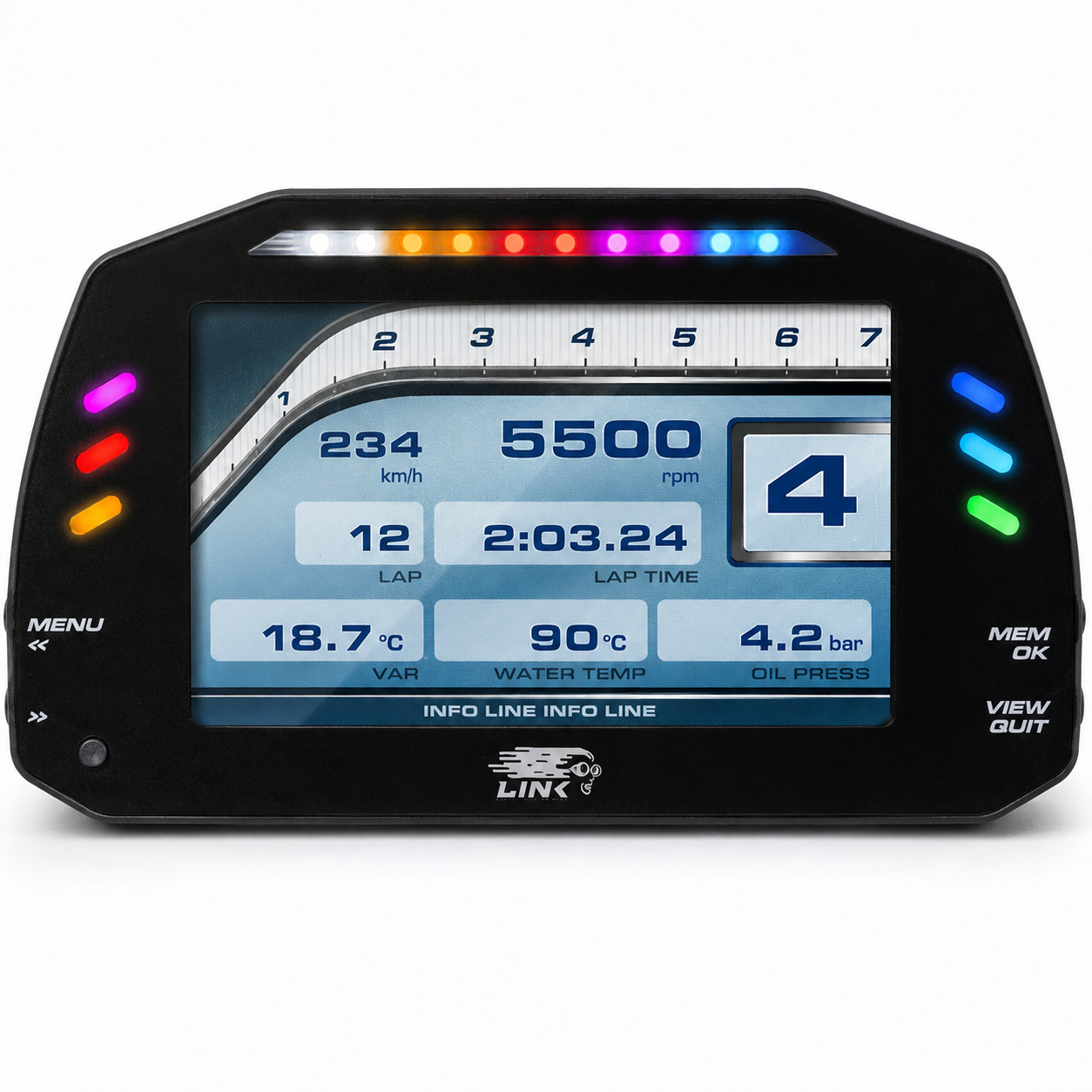

The LINK MXS Strada 5-Inch Dash – Race Edition gives you a compact, full-color digital display designed to bring critical ECU and vehicle information together in one easy-to-read location.

Designed around AiM dash technology with Link ECU integration, the MXS Strada is an excellent upgrade for race cars, track cars, engine swaps, and high-performance builds running compatible Link engine management.

Built for Competition

The Race Edition is designed for motorsport applications where engine data, shift indication, warnings, and driver information take priority.

Configure the dash to display the information that's most important to your combination, including:

• Engine RPM
• Vehicle speed
• Gear position
• Boost pressure
• Air/fuel ratio / Lambda
• Coolant temperature
• Intake air temperature
• Oil pressure
• Oil temperature
• Fuel pressure
• Battery voltage
• Lap information
• Additional ECU and sensor channels

Available channels depend on your ECU, sensors, wiring, and configuration.

5-Inch Full-Color TFT Display

The MXS Strada features a 5-inch, 800 × 480 resolution TFT display that provides a clear view of your engine and vehicle data.

Multiple configurable display pages allow you to organize information around the way you actually use the car.

Instead of filling your interior with individual gauges, you can monitor multiple parameters from one compact digital display.

10 Configurable RGB Shift Lights

Across the top of the MXS Strada are 10 configurable RGB LEDs that can be used as a highly visible shift-light system.

Set your desired RPM thresholds and give the driver an immediate visual indication as the engine approaches the shift point.

This is especially useful in high-RPM or fast-accelerating applications where watching a conventional tachometer can cost valuable time.

Configurable Warning Lights

The Race Edition also provides six configurable RGB alarm LEDs.

These can be configured to alert the driver to critical conditions such as:

• Low oil pressure
• Low fuel pressure
• High coolant temperature
• High intake temperature
• Overboost
• Low battery voltage
• Other ECU or sensor warnings

When you're making a pass or pushing the car on track, an obvious warning light can get your attention much faster than trying to read a small number on a gauge.

Designed to Integrate With Link ECUs

The LINK MXS Strada is designed to communicate with compatible Link G4+ and G4X ECU systems, allowing ECU data to be transmitted to the dash over CAN.

This creates a much cleaner installation than individually wiring every engine sensor directly to the dash.

Your ECU already knows what's happening with the engine—the MXS Strada puts that information directly in front of the driver.

Expand Beyond ECU Data

The MXS Strada isn't limited to information coming from the ECU.

Its additional inputs and communication capabilities allow compatible external sensors and devices to be integrated into the system.

Key capabilities include:

• 8 configurable analog inputs
• Speed input
• RPM input
• 1 digital output
• Dual CAN communication
• Optional GPS integration

This makes it a strong foundation for more advanced motorsport data and vehicle monitoring.

Add GPS for Track Data

Pair the MXS Strada with a compatible optional GPS module to expand its capabilities for track use.

GPS integration can provide valuable speed and lap-related information without relying solely on conventional vehicle sensors.

For road racing, time attack, autocross, and other circuit applications, this turns the dash into an even more useful driver tool.

Key Features

• 5-inch full-color TFT display
• 800 × 480 resolution
• Designed for compatible Link ECU systems
• Race Edition configuration
• 10 configurable RGB shift LEDs
• 6 configurable RGB warning/alarm LEDs
• Multiple configurable display pages
• CAN communication
• 8 configurable analog inputs
• Speed input
• RPM input
• Digital output
• Dual CAN connections
• Automatic ambient-light adjustment
• Optional GPS capability
• Compact aluminum housing
• IP65-rated construction
• Powered by AiM technology
• Suitable for professional street and motorsport builds

Perfect for Performance & Motorsport Builds

The LINK MXS Strada Race Edition is an excellent choice for:

• Drag racing
• Road racing
• Time attack
• Autocross
• Roll racing
• Track-day cars
• Turbocharged builds
• High-horsepower street/track cars
• K-Series swaps
• Honda and Acura race cars
• Nissan and Infiniti builds
• BMW performance builds
• GM and LS swaps
• Custom standalone ECU installations

One Dash Instead of a Dashboard Full of Gauges

A serious race car can quickly end up with separate gauges for boost, oil pressure, fuel pressure, coolant temperature, AFR, and more.

The LINK MXS Strada 5-Inch Race Edition brings that information together into one compact display while adding programmable shift lights and warning indicators.

The result is a cleaner cockpit and faster access to the information that matters when you're actually driving the car.

See the data. See the warning. Hit the shift. Stay focused on the track.

Important Compatibility Note

Verify compatibility with your specific Link ECU, CAN configuration, sensors, and wiring before ordering. Some Link Plug-In ECU installations may require additional CAN connection hardware, and GPS equipment is sold separately unless specifically included with the selected package.
