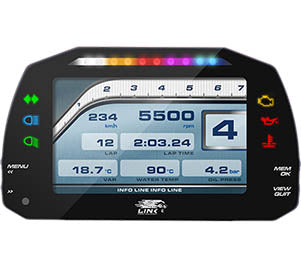

LINK MXS Strada 5-inch Dash - Street Edition
Turn Your Link ECU Data Into a Full-Color Digital Dashboard
Upgrade your cockpit with the LINK MXS Strada 5-Inch Dash – Street Edition, a compact full-color digital display designed to put the engine information you actually need directly in front of you.
Powered by AiM technology and pre-configured for Link engine management, the MXS Strada can display real-time ECU data including RPM, vehicle speed, coolant temperature, oil pressure, and much more.
Whether you're building a K-swap, turbo street car, restomod, or complete standalone ECU setup, the MXS Strada gives your car the modern digital dash it deserves.
Built for the Street
This is the Street Edition, so you don't have to sacrifice the functions you need for a road-driven car.
Six dedicated street icons provide visual indication for:
- Turn signals
- Headlights
- High beams
- Check engine warning
- Oil pressure warning
- Engine temperature warning
That makes it an excellent choice for performance street cars where you want a motorsport-style display while retaining important road-going indicators.
Bright 5-Inch Full-Color TFT Display
At the center of the MXS Strada is a high-contrast 5-inch 800 × 480 TFT display.
An integrated ambient light sensor automatically adjusts screen brightness as lighting conditions change, helping keep the display visible whether you're driving during the day or at night.
Multiple display layouts allow you to organize the information that's most important to your particular build.
Monitor parameters such as:
- Engine RPM
- Vehicle speed
- Coolant temperature
- Oil temperature
- Oil pressure
- Fuel pressure
- Air/fuel ratio
- Boost pressure
- Intake air temperature
- Battery voltage
- Lap information
- Additional ECU and sensor data
Available channels depend on your ECU, sensors, wiring, and configuration.
10 Customizable RGB Shift Lights
Across the top of the dash are 10 multi-color RGB shift LEDs.
Configure your shift-light strategy to match your engine and gearing, including individual RPM thresholds for different gears.
Instead of constantly watching the tachometer, the LEDs give you an immediate visual indication as the engine approaches your desired shift point.
Designed to Work With Link ECUs
One of the biggest advantages of choosing the LINK version of the MXS Strada is integration.
The dash comes pre-configured to communicate with Link G4+ and G4X Wire-In and Plug-In ECUs using Link's CAN stream. Link describes the setup as requiring no dash-side CAN stream configuration—PCLink simply needs to be configured for the dash.
For builders already running Link engine management, that means less time trying to make two completely different systems communicate.
Important: Link notes that Plug-In ECU installations require the CANPCB and CANF connectors, which are sold separately.
More Than Just an ECU Display
The MXS Strada gives you room to expand beyond the information already available from your ECU.
It features:
- 8 configurable analog inputs
- Speed input
- Coil RPM input
- 1 digital output
- 2 CAN connections
- Optional GPS capability
- Expandability for additional sensors and devices
This makes the dash an excellent foundation for more advanced street and performance builds.
Customize It for Your Car
The dash can be personalized using Link PCLink and AiM Race Studio 3, allowing you to configure the display and supporting functions around your vehicle.
Instead of mounting gauges all over the dashboard, you can bring critical information together on one clean display.
Key Features
- 5-inch full-color TFT display
- 800 × 480 resolution
- High-contrast display
- Automatic ambient-light brightness adjustment
- 10 configurable RGB shift LEDs
- Six dedicated Street Edition warning/indicator icons
- Multiple configurable display layouts
- CAN communication with compatible Link ECUs
- 8 configurable analog inputs
- Speed and RPM inputs
- Digital output
- Dual CAN connections
- Anodized aluminum housing
- Metallic pushbuttons
- IP65 water-resistant construction
- Optional GPS module available separately
- Powered by AiM technology
Compact Size. Serious Capability.
At approximately 169.4 × 97 × 23 mm and just 480 grams, the MXS Strada packs extensive display and input capabilities into a compact package that's easier to integrate into custom dashboards and tight interiors.
It's an excellent solution for:
- K-Series swaps
- Honda and Acura builds
- Turbo street cars
- Engine swaps
- Restomods
- Custom standalone ECU installations
- Performance street cars
- Track-day cars that are still street driven
What's Included?
According to Link, the Street Edition package includes:
- LINK MXS Strada 5-Inch Dash
- USB cable
- 14-pin standard wiring
- 23-pin connector and contacts
The GPS module is available separately.
One Dash. All the Information You Need.
If you've already invested in a Link ECU, don't hide all of that valuable engine data inside your laptop.
The LINK MXS Strada 5-Inch Street Edition puts critical information directly in your line of sight while giving your interior the clean appearance of a modern digital dashboard.
Monitor the engine. See warnings immediately. Know when to shift. And eliminate the need to cover your interior with individual gauges.
For a street-driven Link ECU build, the MXS Strada gives you the combination of OEM-style road functions, motorsport data, and Link ECU integration in one compact display.
