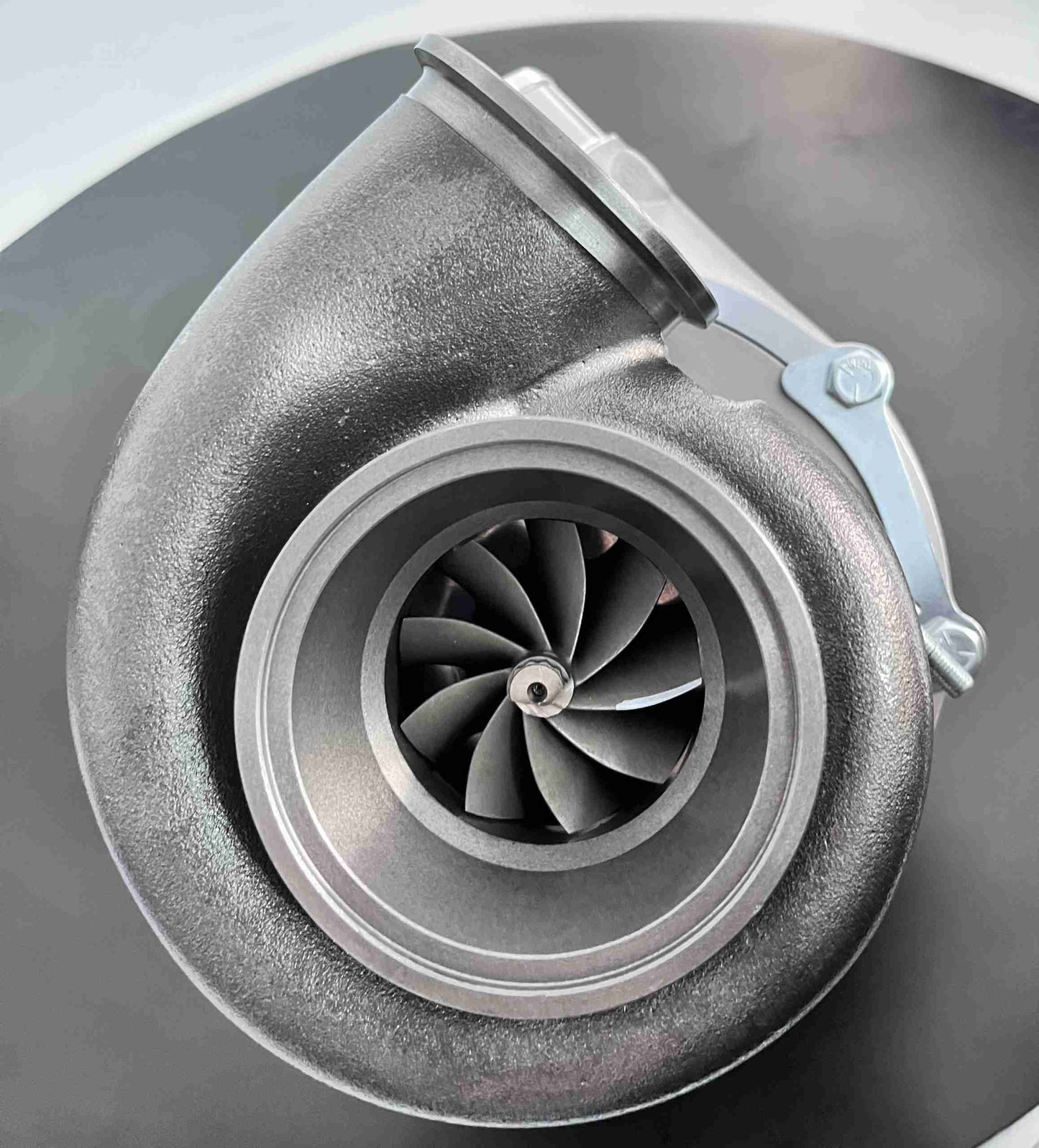

PTA series Turbine wheel with slim nose and hub for reduced weight and faster spool-up
Decentered blades on turbine wheel for improved gas flow ability and reduced turbo lag

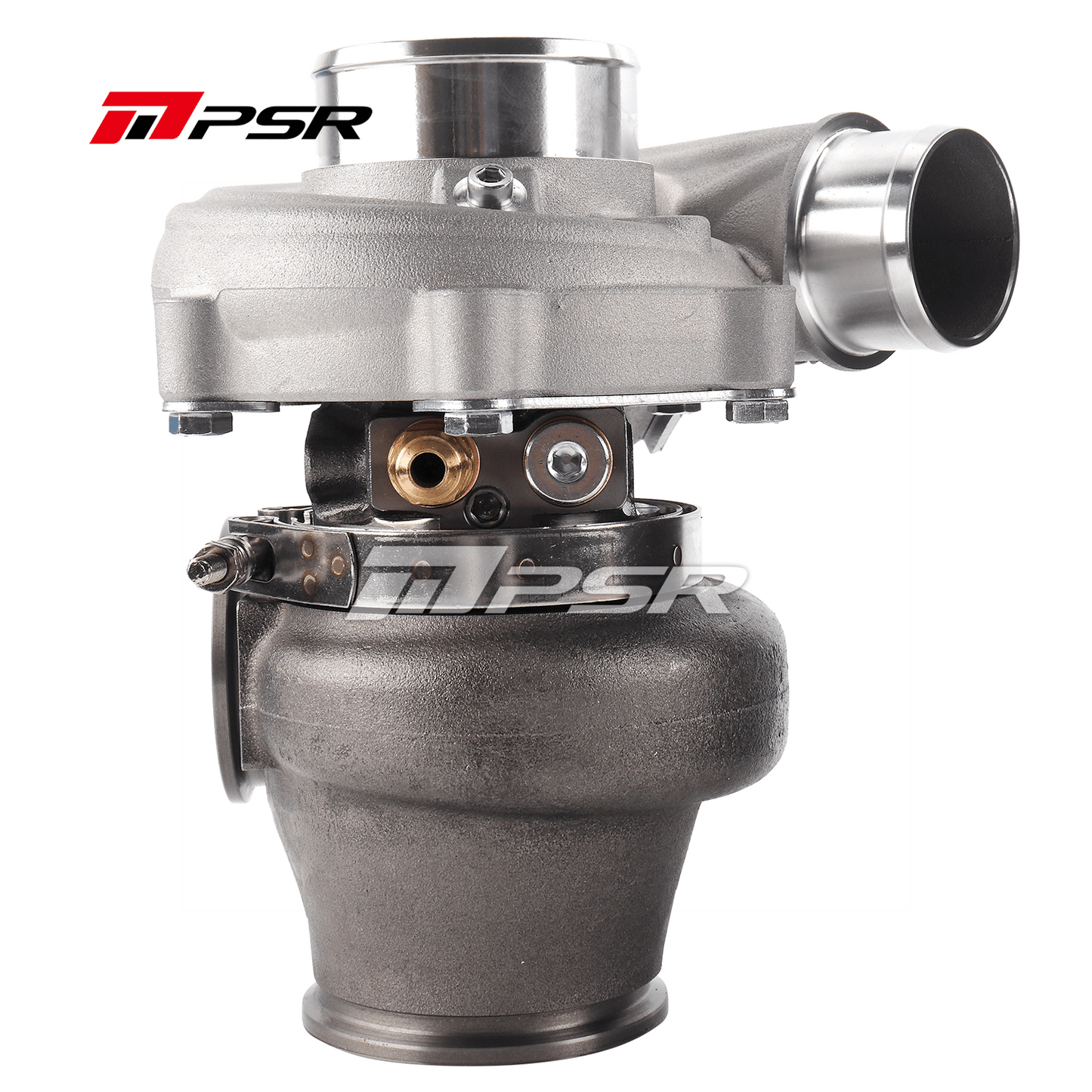

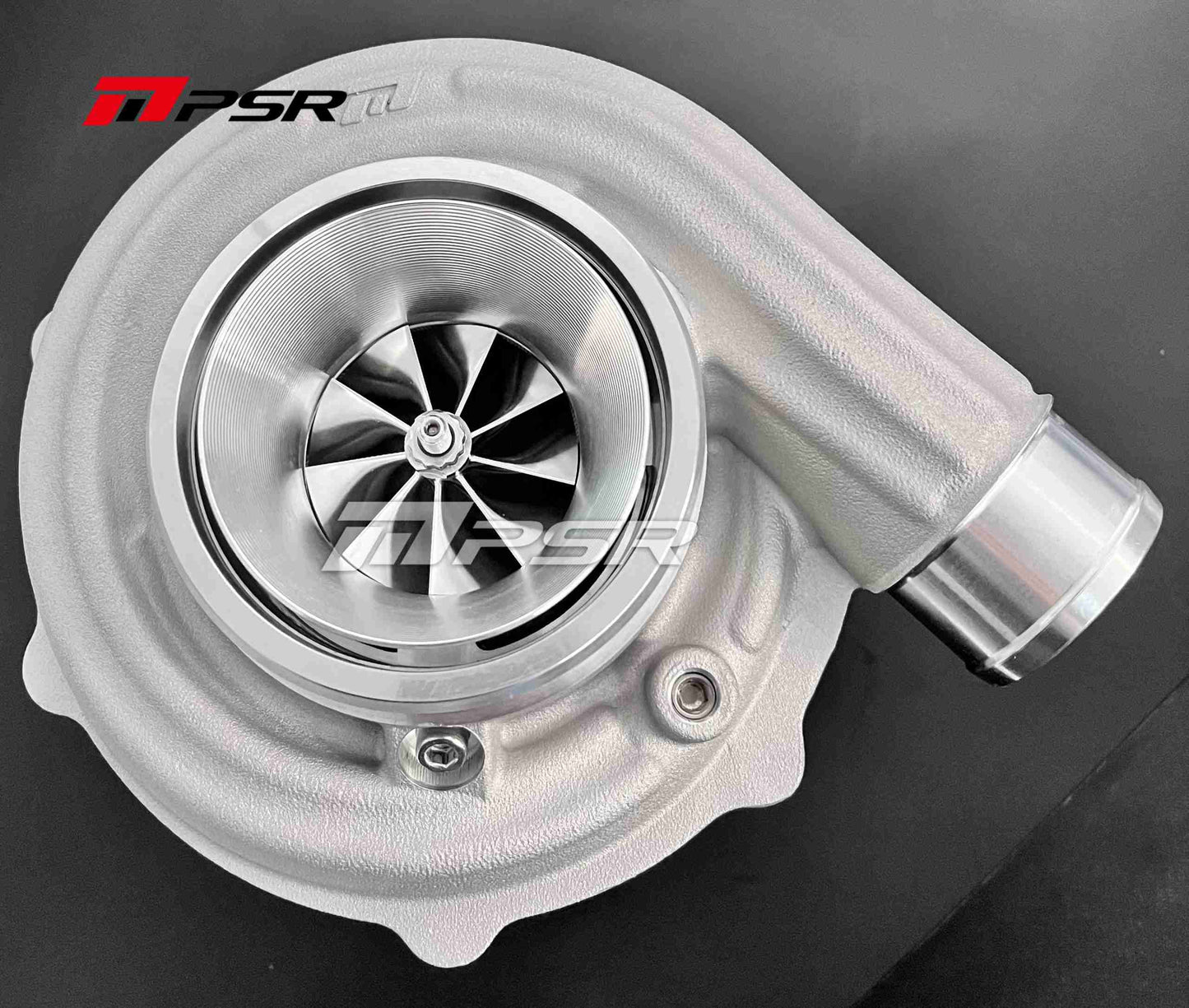

Newly designed Anti-Surge compressor housings with integrated speed sensor port and boost reference port for improved performance monitoring and control
Dual ball bearing system for improved durability, stability, and reduced friction resulting in enhanced performance and longevity

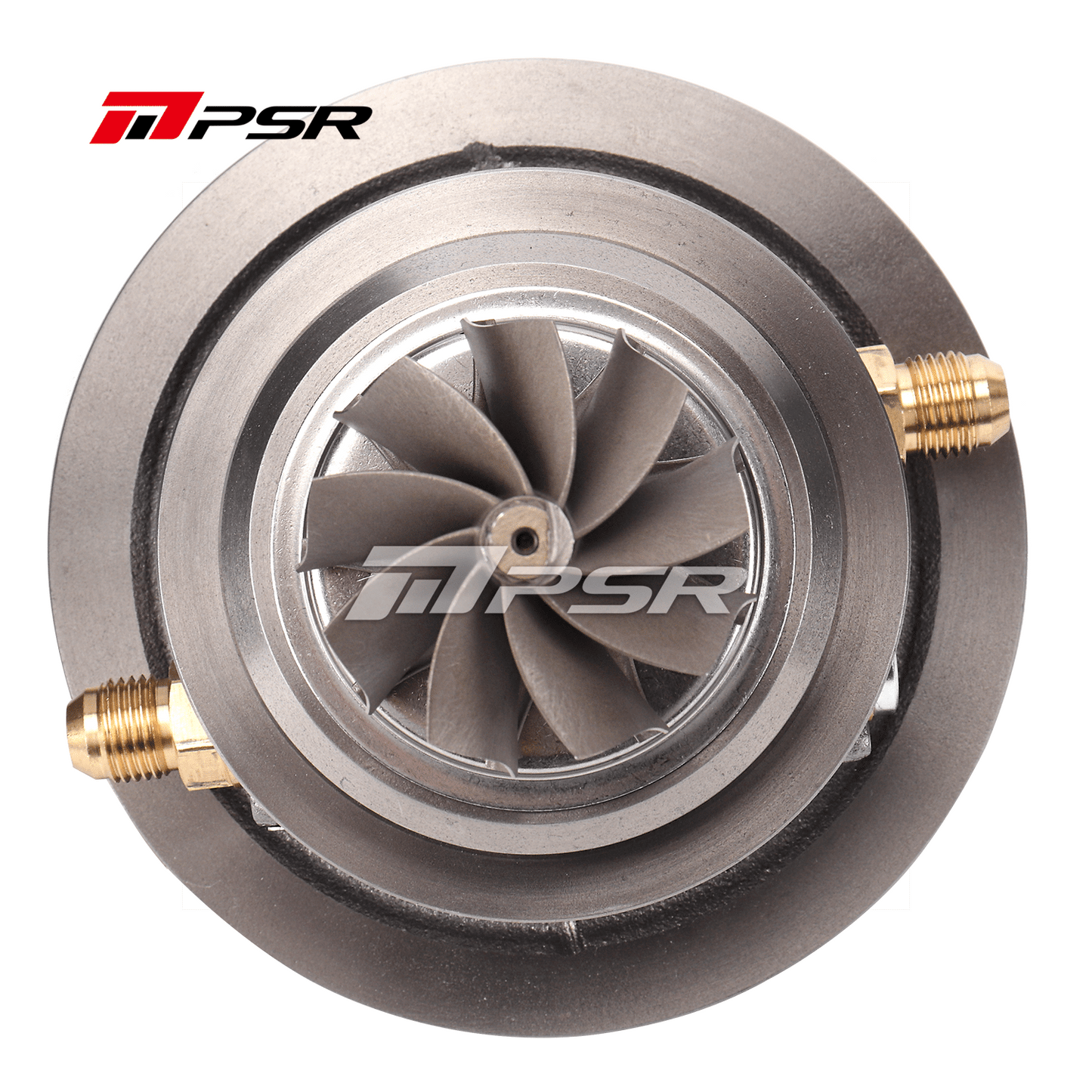

PTG Series Compressor Wheel: 68*84mm
PTA Series Turbine Wheel: 68*62mm
Compressor Inlet: 4” Hose
Compressor Outlet: 2.5” Hose
Compressor Inlet: 4” Hose
Compressor Outlet: 2.5” Hose

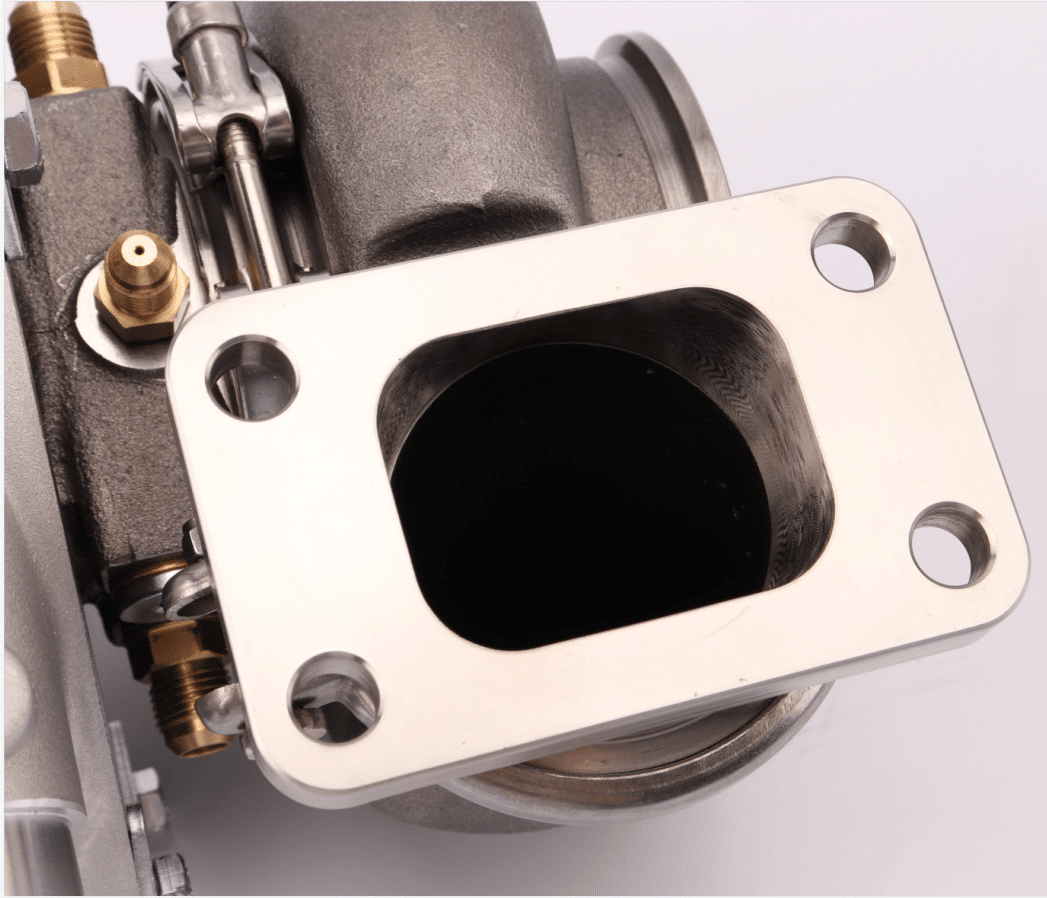

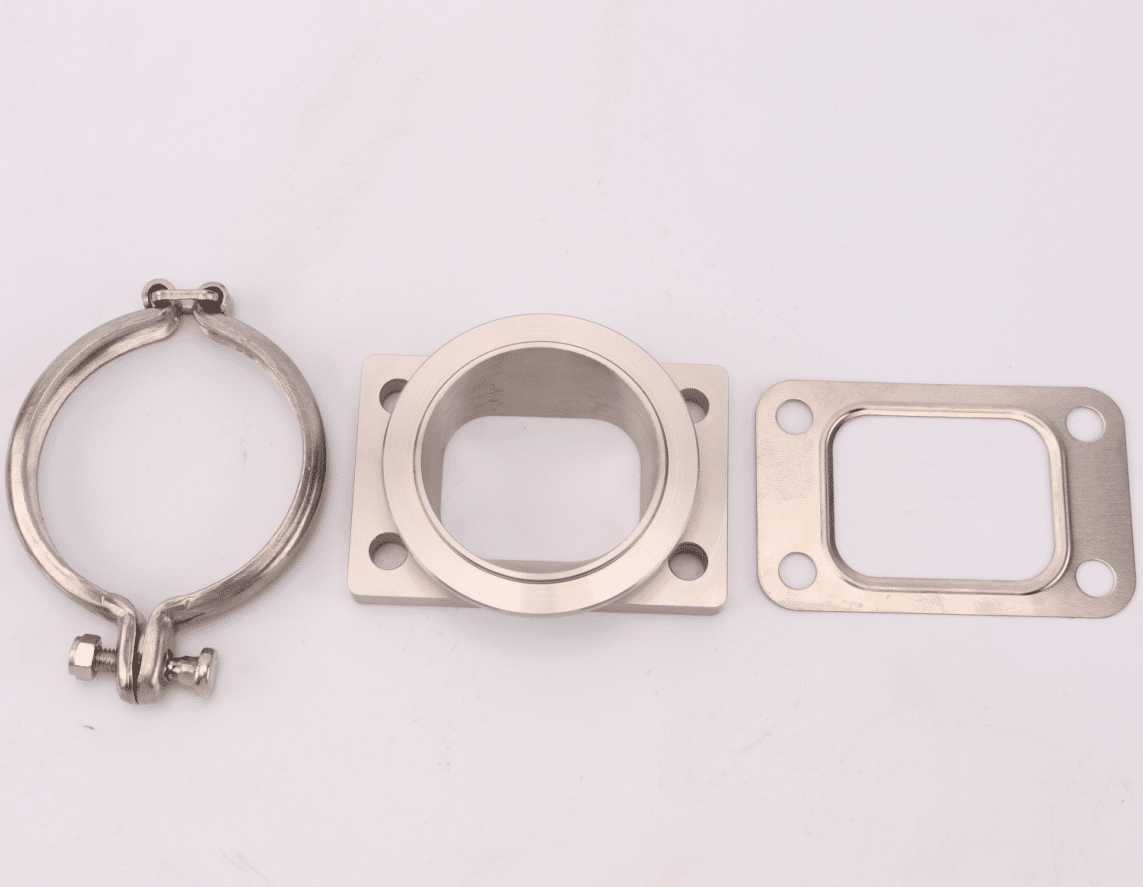

Turbine Inlet: T3/T4/V-BAND
Turbine Outlet: 3” V-Band
Water Ports: 2-M14 x 1.5
Oil Feed: 7/16-24 UNF with a -4AN Restrictor Pre-installed
