2000-2006 Volkswagon Audi 1.8T Link Ecu G4X Xtreme

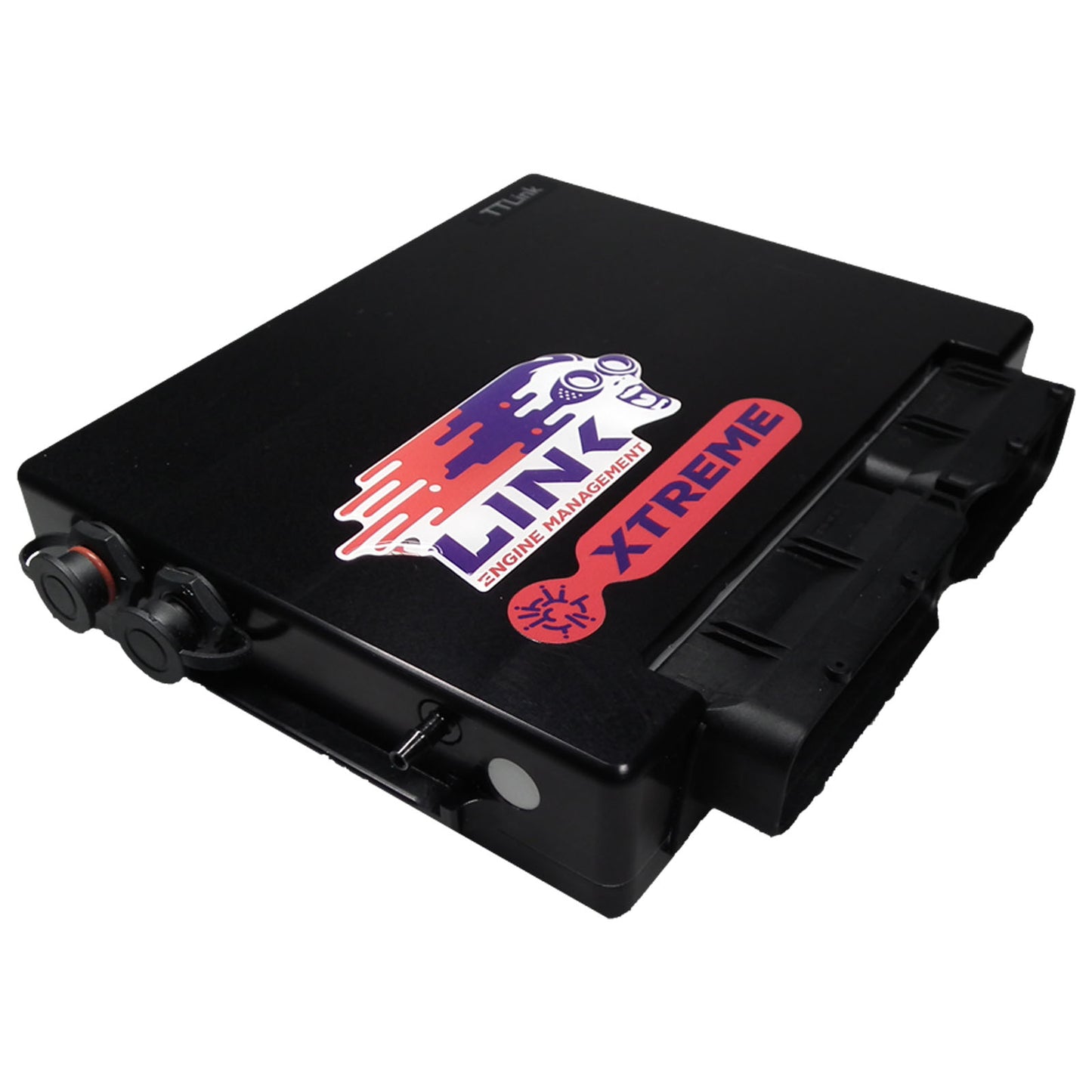

Link ECU G4X VW/Audi 1.8T PlugIn ECU — TTLink TTX
Upgrade your compatible Volkswagen, Audi, SEAT or Škoda 1.8T with the Link ECU G4X TTLink TTX PlugIn ECU. This advanced standalone engine-management system installs in the factory ECU location and connects to the original wiring loom, providing complete control over fuel, ignition, boost, electronic throttle and advanced motorsport functions.
Designed for VW/Audi Group PQ34 vehicles with a drive-by-wire 1.8T engine, the TTLink TTX supports compatible front-wheel-drive and Haldex all-wheel-drive applications.
FREE Link ECU USB Tuning Cable — $70 Value
Every TTLink TTX purchased from Kugan Tuning includes a compatible Link ECU USB tuning cable at no additional cost. Connect your laptop directly to the ECU for configuration, diagnostics, data logging and professional tuning.
Why Choose the Link G4X TTLink TTX?
- Designed for compatible VW/Audi Group 1.8T engines
- Connects to the factory 121-pin, two-connector ECU harness
- Supports factory electronic throttle
- Compatible with front-wheel-drive and Haldex AWD vehicles
- Choice of onboard 4-bar or 7-bar MAP sensor
- Advanced fuel, ignition and boost control
- Launch control, anti-lag and flat-shift capability
- CAN communication
- 512 MB of onboard data-logging memory
- FREE Link ECU USB tuning cable included—a $70 value
- FREE Kugan Tuning remote setup support included—a $297 value
Required Compatibility Checklist
Your vehicle must meet all of the following requirements:
- VW/Audi Group 1.8L turbocharged engine
- Factory ECU with two connectors and 121 pins in total
- Factory drive-by-wire electronic throttle
- Manual transmission
- Front-wheel drive or Haldex all-wheel drive
- Compatible engine code and ECU pinout
Compare your factory ECU connectors with the product photos before ordering. Compatibility must be verified by engine code, connector type and ECU pinout, not by model year alone.
Confirmed Compatible Applications
| Make | Model | Model Year | Engine Code |
|---|---|---|---|
| Audi | TT | 1999–2002 | AJQ |
| Volkswagen | New Beetle | 2005 | AWU |
| Volkswagen | Passat | 2000 | Verify before ordering |
| Volkswagen | Golf | 2001 | AUM |
Likely Compatible Applications—Not Yet Tested
The following applications are expected to be compatible but have not been fully tested. Verify the factory ECU connector, engine code and pinout before ordering.
Audi
| Model | Model Years | Engine Code |
|---|---|---|
| A3 | 1998–2000 | AJQ |
| A3 | 1999–2000 | APP |
| A3 | 1999–2001 | ARZ |
| A3 | 2000–2005 | ARX |
| A3 | 2000–2005 | ARY |
| A3 | 2000–2005 | AUM |
| A3 | 2000–2005 | AUQ |
| A4 | 1998–2000 | APU |
| A4 | 2000–2002 | AVJ |
| A4 | 2000–2002 | AWT |
| A4 | 2002–2003 | BEX |
| A4 | 2004–2007 | BFB |
| A6 | 1998–2000 | APU |
| A6 | 2000–2002 | AWT |
| S3 | 1998–2001 | APY |
| S3 | 2000–2005 | BAM |
| S3 | 2002–2003 | AMK |
| TT | 1998–2000 | APX |
| TT | 1999–2000 | APP |
| TT | 1999–2002 | AJQ |
| TT | 2000–2002 | AMU |
| TT | 2000–2005 | ARX |
| TT | 2000–2005 | ARY |
| TT | 2000–2005 | AUM |
| TT | 2000–2005 | AUQ |
| TT | 2000–2005 | BAM |
| TT | 2000–2006 | AWP |
| TT | 2005–2006 | BFV |
| TT | 2005–2006 | BVP |
| TT | 2005–2006 | BVR |
SEAT
| Model | Model Years | Engine Code |
|---|---|---|
| Alhambra | 2000–2004 | AWC |
| Ibiza | 1999–2000 | AQX |
| Ibiza | 2000–2001 | AYP |
| Ibiza | 2004–2008 | BJX |
| Ibiza | 2005–2008 | BBU |
| Leon | 1998–2000 | AJQ |
| Leon | 1999–2000 | APP |
| Leon | 2000–2001 | AJQ |
| Leon | 2000–2005 | ARY |
| Leon | 2000–2005 | AUQ |
| Leon | 2000–2005 | BAM |
| Leon | 2002–2003 | AMK |
Škoda
| Model | Model Years | Engine Code |
|---|---|---|
| Octavia | 1999–2001 | ARZ |
| Octavia | 2000–2005 | ARX |
| Octavia | 2000–2005 | ARY |
| Octavia | 2000–2005 | AUM |
| Octavia | 2000–2005 | AUQ |
Volkswagen
| Model | Model Years | Engine Code |
|---|---|---|
| Bora | 2000–2005 | ARX |
| Bora | 2000–2005 | ARY |
| Bora | 2000–2005 | AUM |
| Bora | 2000–2005 | AUQ |
| Bora | 2002–2006 | AWP |
| Golf | 1999–2001 | ARZ |
| Golf | 2000–2005 | ARX |
| Golf | 2000–2005 | ARY |
| Golf | 2000–2005 | AUM |
| Golf | 2000–2005 | AUQ |
| Golf | 2002–2006 | AWP |
| Jetta | 2001–2009 | AWP |
| New Beetle | 1999–2000 | APH |
| New Beetle | 1999–2000 | AVC |
| New Beetle | 2002–2004 | AWP |
| Passat | 1998–2000 | APU |
| Passat | 2000–2002 | AWT |
| Polo | 2004–2008 | BJX |
| Polo | 2005 | AWP |
| Polo | 2005–2008 | BBU |
| Sharan | 2000–2004 | AWC |
Known Incompatible Engine Codes
The TTLink TTX is known not to be compatible with the following engine codes:
- AEB
- AGU
- AJH
- AJL
Important CAN Connection Information
The TTLink TTX is not compatible with Link ECU CANJST cables.
Use one of the following cables to connect compatible CAN devices:
- CANLTW—Link part number 101-0211
- CANF—Link part number 101-0020
These CAN cables are sold separately unless specifically included with your order.
G4X Engine-Management Features
- Up to 6D fuel and ignition mapping
- Sequential fuel injection
- Precision closed-loop camshaft control where applicable
- Digital triggering with support for OEM trigger patterns
- OEM idle-control hardware support
- Electronic-throttle control
- 5D boost control with three switchable tables
- Boost control based on gear, vehicle speed or throttle position
- Launch control
- Anti-lag
- Flat-shift control
- QuickTune automated fuel tuning
- Individual-cylinder correction
- Gear-based fuel, ignition and boost compensation
- Real-time selectable fuel, ignition and boost maps
- Continuous onboard barometric correction
- Staged injection
- Knock control with configurable knock windows
- Hall-effect, variable-reluctance and optical trigger-sensor support
- CAN communication
- Onboard statistics recording
- 512 MB of onboard data-logging memory
I/O Expansion Options
The TTLink TTX does not have a separate expansion connector. The following additional inputs and outputs are accessible through the main ECU header:
- Pin 110: Temperature input 3
- Pin 111: Analog voltage input 10
- Pin 112: Digital input 9
- Pin 113: Ignition output 6
What’s Included
- Link ECU G4X TTLink TTX PlugIn ECU
- Selected onboard 4-bar or 7-bar MAP sensor
- FREE Link ECU USB tuning cable—a $70 value
- FREE Kugan Tuning remote setup support—a $297 value
FREE Remote Setup Support — $297 Value
Purchase your Link ECU from Kugan Tuning and receive complimentary remote setup support to help prepare the ECU and vehicle for startup and professional tuning.
Remote setup support includes:
- Remote ECU connection and setup assistance
- Basemap selection guidance
- Initial ECU configuration assistance
- Startup configuration review
- Sensor and input verification
- Guidance preparing the vehicle for professional tuning
This support helps identify configuration and sensor problems early, reducing unnecessary troubleshooting and wasted dyno time.
Custom remote tuning and dyno tuning are not included unless separately purchased. Successful startup and vehicle operation depend on correct compatibility, installation, wiring, mechanical condition and ECU calibration.
