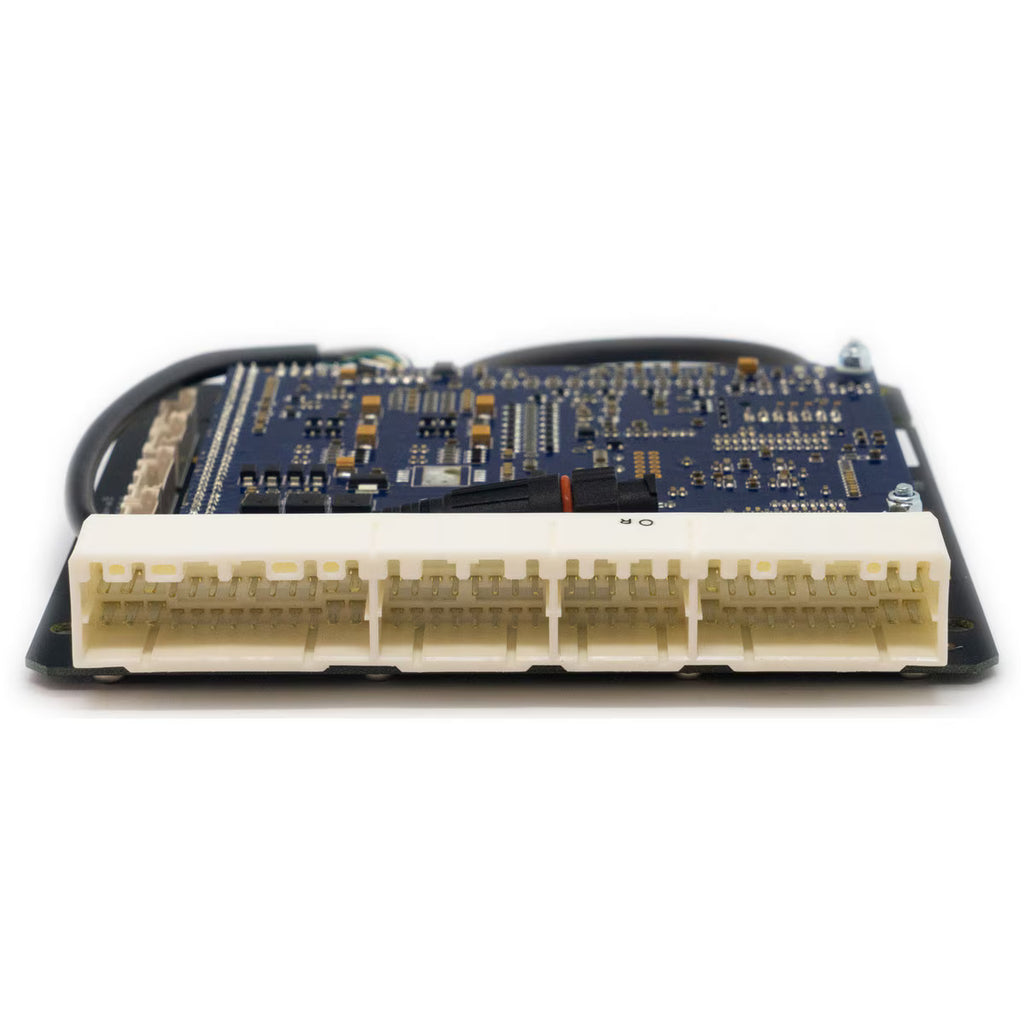

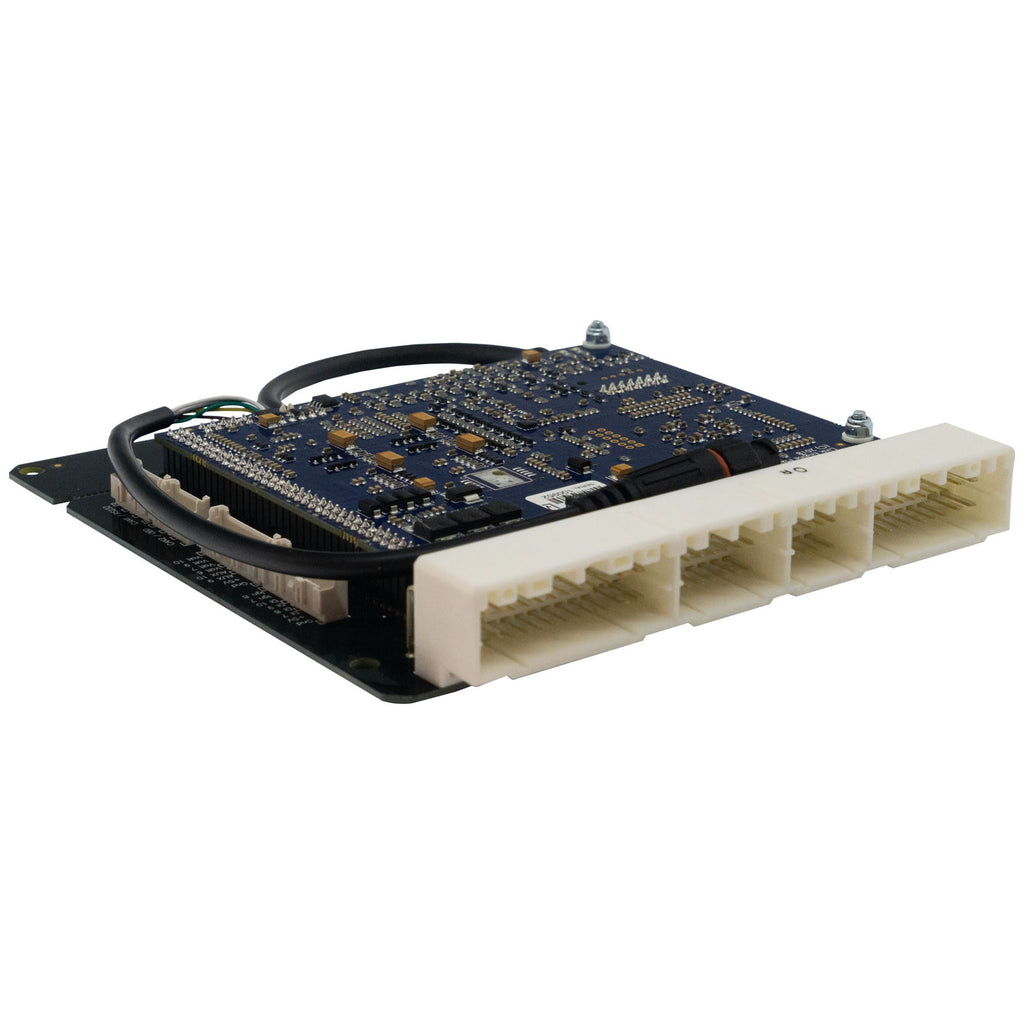

Link ECU G4X Mitsubishi Evolution 4–8 PlugIn ECU — EVO8X (203-4000)
Upgrade your Mitsubishi Lancer Evolution with the Link ECU G4X EVO8X PlugIn ECU. This advanced standalone engine-management system installs inside the factory ECU enclosure and connects to the original wiring loom, giving you complete control over fuel, ignition, boost and advanced motorsport functions.
Designed for compatible Evolution 4 through Evolution 8 models with the turbocharged 4G63 engine, the EVO8X delivers modern engine management without requiring a complete standalone wiring harness.
FREE Link ECU USB Tuning Cable — $70 Value
Every EVO8X purchased from Kugan Tuning includes a compatible Link ECU USB tuning cable at no additional cost. Connect your laptop directly to the ECU for configuration, diagnostics, data logging and professional tuning.
Critical EVO 8 Connector Check
Mitsubishi Evolution 8 models were produced with different ECU connector configurations:
- Four-plug EVO 8 ECU: Requires the EVO8X—this listing
- Three-plug EVO 8 ECU: Requires the Link ECU EVO9X
Compare your factory ECU connectors with the product photos before purchasing. Select the ECU by connector configuration—not model year alone.
Why Choose the Link G4X EVO8X?
- Designed for compatible Mitsubishi Evolution 4–8 applications
- Supports turbocharged 4G63 engines
- Installs inside the factory OEM ECU enclosure
- Connects to the original engine wiring loom
- No complete standalone wiring harness required
- Choice of onboard 4-bar or 7-bar MAP sensor
- Advanced fuel, ignition and boost control
- Launch control, anti-lag and flat-shift capability
- Expandable inputs and outputs
- CAN communication
- 512 MB of onboard data-logging memory
- FREE Link ECU USB tuning cable included—a $70 value
- FREE Kugan Tuning remote setup support included—a $297 value
Suitable Applications
- Mitsubishi Lancer Evolution 4 CN9A
- Mitsubishi Lancer Evolution 5 CP9A
- Mitsubishi Lancer Evolution 6 CP9A
- Mitsubishi Lancer Evolution 6.5 Tommi Mäkinen Edition CP9A
- Mitsubishi Lancer Evolution 7 CT9A
- Mitsubishi Lancer Evolution 8 CT9A with the four-plug factory ECU
- Manual-transmission vehicles only
Important Compatibility Information
- Compatible with manual-transmission vehicles only
- Evolution 8 applications must have the four-plug factory ECU connector
- Three-plug Evolution 8 models require the Link ECU EVO9X
- Compare your factory ECU connector and pinout with the product photos before ordering
- Compatibility depends on the ECU connector and pinout—not only the model year, chassis or engine
- Select the appropriate onboard 4-bar or 7-bar MAP sensor when ordering
- Most factory vehicle functions are supported, but availability can vary by model and market
- Modified vehicles and engine swaps may require additional wiring, sensors and configuration
- Professional installation and calibration are strongly recommended
G4X Engine-Management Features
- Up to 6D fuel and ignition mapping
- Sequential fuel injection
- Precision closed-loop camshaft control where applicable
- Digital triggering with support for OEM trigger patterns
- OEM idle-control hardware support
- 5D boost control with three switchable tables
- Boost control based on gear, vehicle speed or throttle position
- Launch control
- Anti-lag
- Flat-shift control
- QuickTune automated fuel tuning
- Individual-cylinder correction
- Gear-based fuel, ignition and boost compensation
- Real-time selectable fuel, ignition and boost maps
- Continuous onboard barometric correction
- Staged injection
- Knock control with configurable knock windows
- Hall-effect, variable-reluctance and optical trigger-sensor support
- CAN communication
- Onboard statistics recording
- 512 MB of onboard data-logging memory
I/O Expansion Options
The EVO8X includes two expansion connectors.
Expansion Connector 1
- Sensor ground
- Low-current 5V sensor supply
- Digital input 7
- Digital input 8
- Digital input 9
- Auxiliary output 4
- Ignition output 7
- Ignition output 8
Expansion Connector 2
- Sensor ground
- Low-current 5V sensor supply
- Auxiliary output 9—reserved for electronic throttle and unavailable as a general-purpose auxiliary output
- Auxiliary output 10
- Analog voltage input 6
- Analog voltage input 7
- Analog voltage input 9
- Analog voltage input 10
What’s Included
- Link ECU G4X Mitsubishi EVO8X PlugIn ECU
- Selected onboard 4-bar or 7-bar MAP sensor
- FREE Link ECU USB tuning cable—a $70 value
- FREE Kugan Tuning remote setup support—a $297 value
FREE Remote Setup Support — $297 Value
Purchase your Link ECU from Kugan Tuning and receive complimentary remote setup support to help prepare the ECU and vehicle for startup and professional tuning.
Remote setup support includes:
- Remote ECU connection and setup assistance
- Basemap selection guidance
- Initial ECU configuration assistance
- Startup configuration review
- Sensor and input verification
- Guidance preparing the vehicle for professional tuning
This support helps identify configuration and sensor problems early, reducing unnecessary troubleshooting and wasted dyno time.
Custom remote tuning and dyno tuning are not included unless separately purchased. Successful startup and vehicle operation depend on correct compatibility, installation, wiring, mechanical condition and ECU calibration.
