2000-2007 Subaru WRX 2.0 Link Ecu G4X

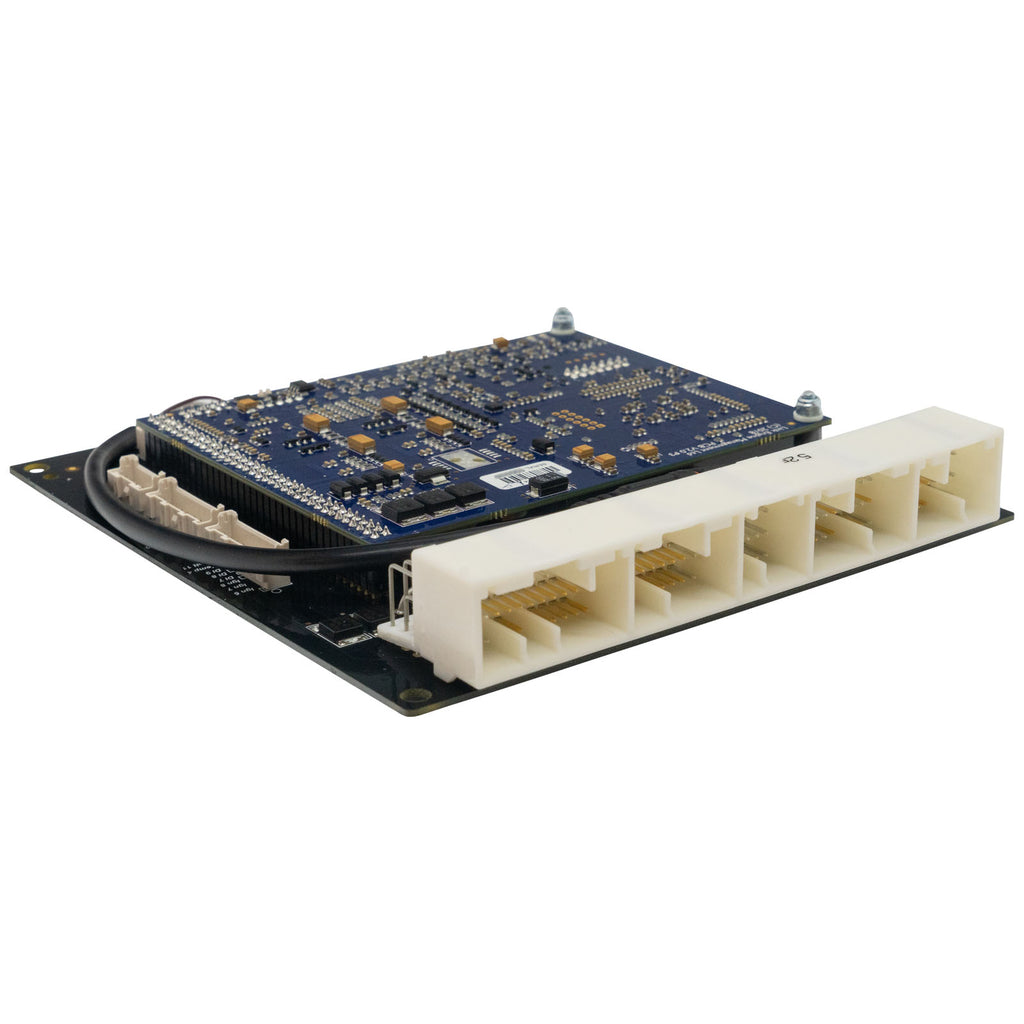

Link ECU G4X Subaru WRX V7–V9 PlugIn ECU — WRX9X
Upgrade your Subaru WRX with the Link ECU G4X WRX9X PlugIn ECU. This advanced standalone engine-management system installs inside the factory ECU enclosure and connects to the original wiring loom, giving you complete control over fuel, ignition, boost, camshaft timing and advanced motorsport functions.
Designed for compatible WRX V7–V9 models with the turbocharged 2.0L EJ20 engine, the WRX9X delivers modern engine-management capabilities without requiring a complete standalone wiring harness.

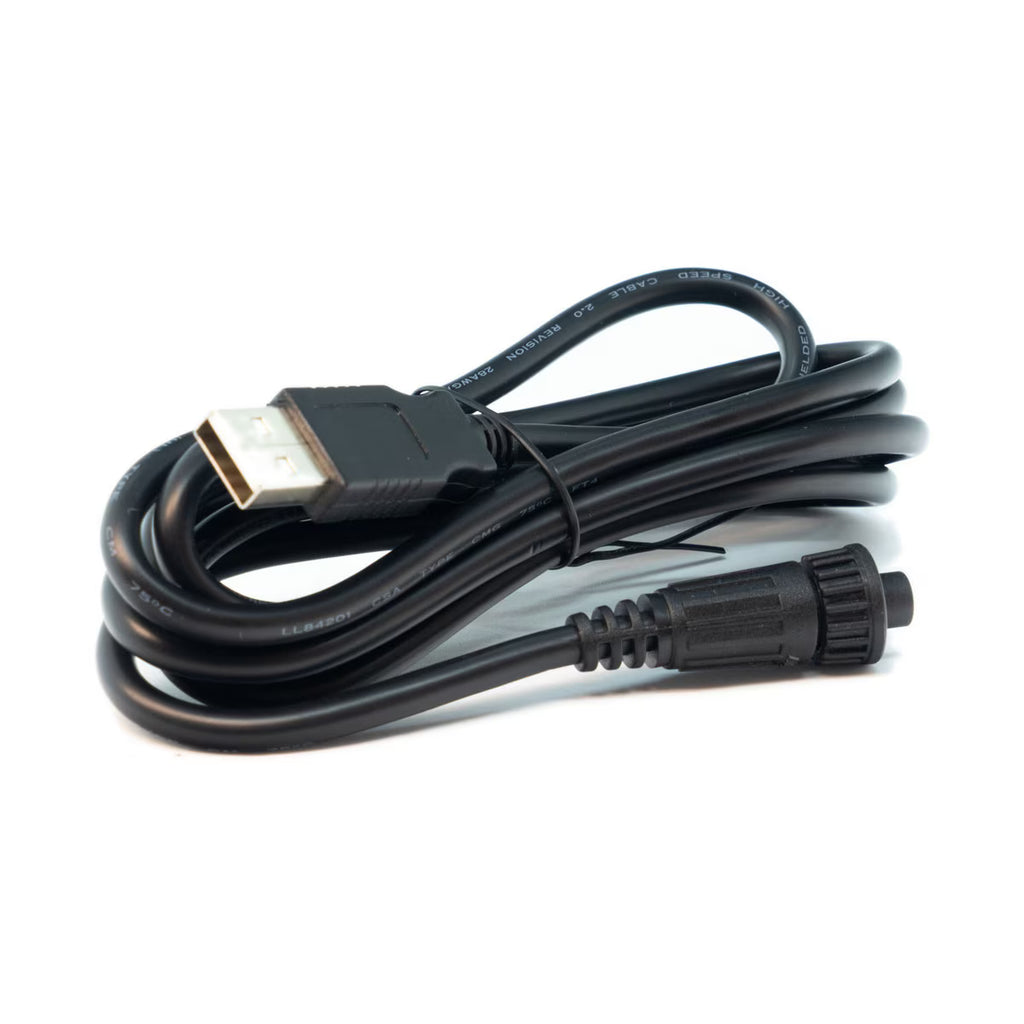

FREE Link ECU USB Tuning Cable — $70 Value
Every WRX9X purchased from Kugan Tuning includes a compatible Link ECU USB tuning cable at no additional cost. Connect your laptop directly to the ECU for configuration, diagnostics, data logging and professional tuning.
Why Choose the Link G4X WRX9X?
- Designed for compatible Subaru WRX V7–V9 applications
- Supports turbocharged 2.0L EJ20 engines with camshaft control
- Installs inside the factory OEM ECU enclosure
- Connects to the original five-plug ECU harness
- No complete standalone wiring harness required
- Advanced fuel, ignition, boost and camshaft control
- Launch control, anti-lag and flat-shift capability
- Expandable inputs and outputs
- CAN communication
- 512 MB of onboard data-logging memory
- FREE Link ECU USB tuning cable included—a $70 value
- FREE Kugan Tuning remote setup support included—a $297 value
Suitable Applications
- Subaru WRX V7, V8 and V9
- GD and GG chassis
- Model years 2000–2007
- Turbocharged 2.0L EJ20 engine with camshaft control
- Factory five-plug ECU connector
- Manual-transmission vehicles only
Important Compatibility Information
- Compatible with 2.0L models only
- Compatible with manual-transmission vehicles only
- Requires a factory five-plug ECU connector

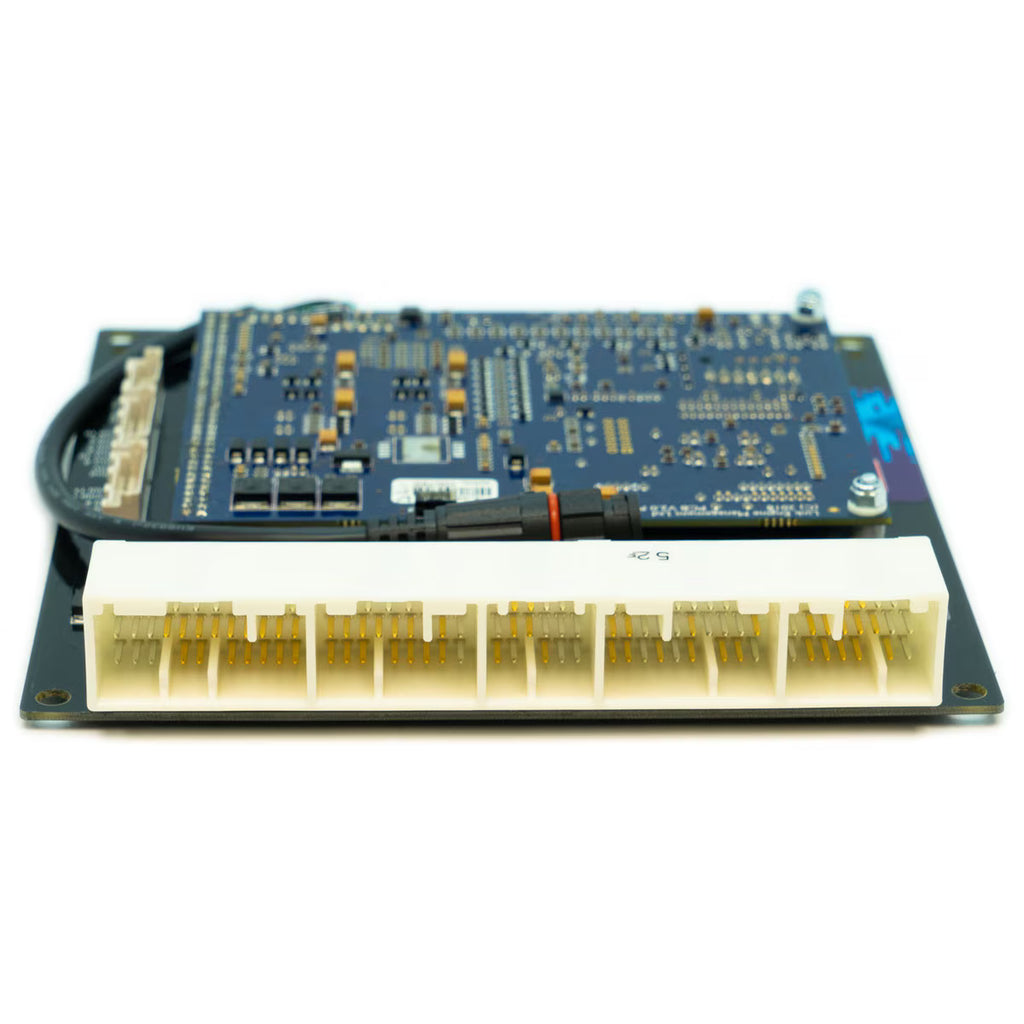

- Compare your factory ECU connectors with the connector header shown in the product photos before ordering
- Compatibility depends on the vehicle’s ECU connector and pinout—not only its model year, chassis or engine
- A dedicated intake-air-temperature sensor is highly recommended
- Most factory vehicle functions are supported, but availability can vary by model and market
- Modified vehicles and engine swaps may require additional wiring, sensors and configuration
- Professional installation and calibration are strongly recommended
G4X Engine-Management Features
- Up to 6D fuel and ignition mapping
- Sequential fuel injection
- Precision closed-loop camshaft control
- Independent control of up to four camshafts where applicable
- Digital triggering with support for OEM trigger patterns
- OEM idle-control hardware support
- 5D boost control with three switchable tables
- Boost control based on gear, vehicle speed or throttle position
- Launch control
- Anti-lag
- Flat-shift control
- QuickTune automated fuel tuning
- Individual-cylinder correction
- Gear-based fuel, ignition and boost compensation
- Real-time selectable fuel, ignition and boost maps
- Continuous onboard barometric correction
- Staged injection
- Knock control with configurable knock windows
- Hall-effect, variable-reluctance and optical trigger-sensor support
- CAN communication
- Onboard statistics recording
- 512 MB of onboard data-logging memory
I/O Expansion Options
Expansion Connector 1
- Ignition output 6
- Ignition output 7
- Ignition output 8
- Digital input 7
- Digital input 8
- Digital input 9
- Temperature input 4
- Analog voltage input 11
Expansion Connector 2
- Sensor ground
- Low-current 5V sensor supply
- Auxiliary output 9—reserved for electronic throttle and unavailable as a general-purpose auxiliary output
- Auxiliary output 10
- Analog voltage input 6
- Analog voltage input 7
- Analog voltage input 9
- Analog voltage input 10
What’s Included
- Link ECU G4X Subaru WRX9X PlugIn ECU
- FREE Link ECU USB tuning cable—a $70 value
- FREE Kugan Tuning remote setup support—a $297 value
An external intake-air-temperature sensor is not included unless selected separately.
FREE Remote Setup Support — $297 Value
Purchase your Link ECU from Kugan Tuning and receive complimentary remote setup support to help prepare the ECU and vehicle for startup and professional tuning.
Remote setup support includes:
- Remote ECU connection and setup assistance
- Basemap selection guidance
- Initial ECU configuration assistance
- Startup configuration review
- Sensor and input verification
- Guidance preparing the vehicle for professional tuning
This support helps identify configuration and sensor problems early, reducing unnecessary troubleshooting and wasted dyno time.
Custom remote tuning and dyno tuning are not included unless separately purchased. Successful startup and vehicle operation depend on correct compatibility, installation, wiring, mechanical condition and ECU calibration.
